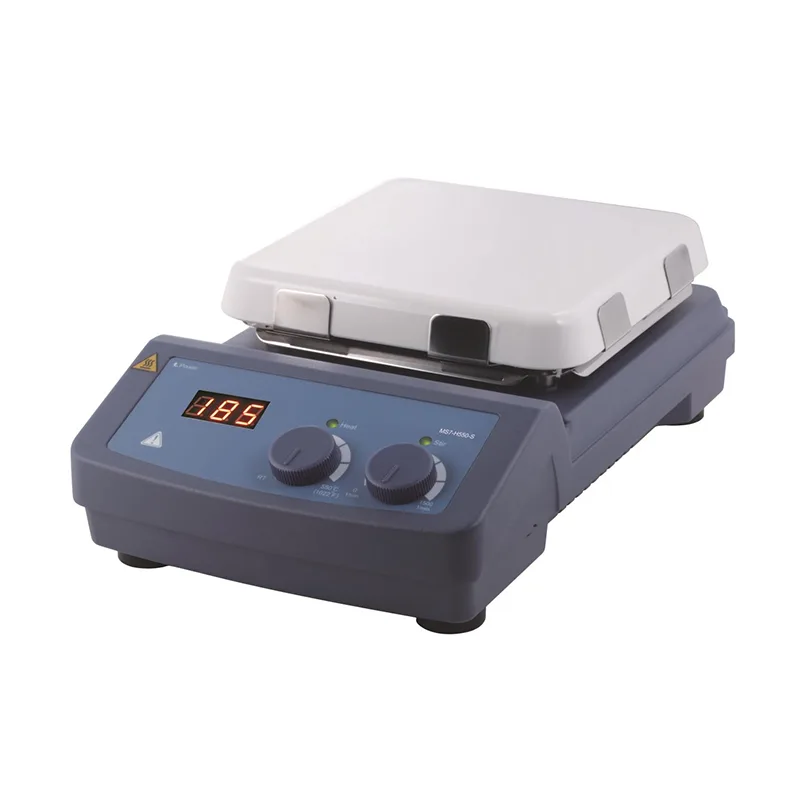

Magnetic Hotplate Stirrer With 7 Inch Ceramic Plate

Magnetic Hotplate Stirrer With 7 Inch Ceramic Plate (Model: MS7-H550-S) is a cost-effective integrated heating and stirring device designed for basic laboratory scenarios. It retains the core 550℃ high-temperature heating capability and external high-precision temperature measurement function. Adopting a concise and practical configuration design, it effectively reduces procurement costs while maintaining stable basic performance. Featuring durable construction and easy operation, it is ideal for daily high-frequency use and bulk purchasing.

High-Temperature Heating & Full-Process Safety Protection

Equipped with a 1000W high-power heating unit, the device reaches a maximum heating temperature of 550℃, covering most routine laboratory heating needs such as sample digestion, solvent evaporation, and reaction system heat preservation. The 7-inch glass-ceramic work plate delivers high thermal conductivity and excellent chemical resistance, featuring fast heating speed and uniform temperature distribution. It resists corrosion from common chemicals including acids, alkalis and organic solvents, extending the service life of the equipment.

Built-in 580℃ hardware-level overheat protection automatically cuts off the heating power once the temperature exceeds the safety threshold, preventing equipment burnout and fire risks. An independent "HOT" high-temperature warning system operates continuously. The warning light flashes constantly when the plate temperature exceeds 50℃, and remains illuminated even after heating is turned off until the temperature drops to a safe level, completely eliminating residual heat scald hazards. It supports an external PT1000 temperature sensor that can be directly immersed into samples for detection, with a measurement accuracy of ±0.2℃, greatly improving temperature control accuracy.

Stable & Durable Stirring System

It adopts a mature shaded-pole motor drive solution with a simple and compact structure, ensuring stable and reliable operation with no special maintenance required for daily use. It supports a wide speed regulation range of 0-1500rpm. The stirring intensity can be intuitively adjusted via a graduated knob, adapting to stirring demands from low-viscosity solutions to medium-viscosity suspensions. With a maximum stirring volume of 10L (water) and compatibility with stir bars up to 80mm in length, it fully meets the mixing, dissolving and reaction stirring requirements for conventional volume samples.

Concise & Intuitive Operation Design

An LED display screen shows the real-time plate temperature with an adjustment step of 5℃. The operation logic is straightforward, enabling quick operation without complicated training. The stirring speed is adjusted via a physical graduated knob with clear feedback to avoid misoperation. Rated IP21 for protection, it effectively blocks vertically dripping liquid from entering the interior, enhancing safety and durability during use. Weighing only 4.5kg with a moderate size, it is easy to move and store among different laboratory benches.

Application Scenarios

Magnetic Hotplate Stirrer With 7 Inch Ceramic Plate is widely applied in various basic laboratory scenarios, including university teaching demonstration experiments, routine sample dissolution and mixing, solution heating and constant temperature maintenance, and simple chemical reactions. Thanks to its cost performance, stability and durability, it is particularly suitable for educational institutions requiring equipment bulk procurement, quality inspection departments of small and medium-sized enterprises, and basic R&D laboratories with moderate precision requirements.
