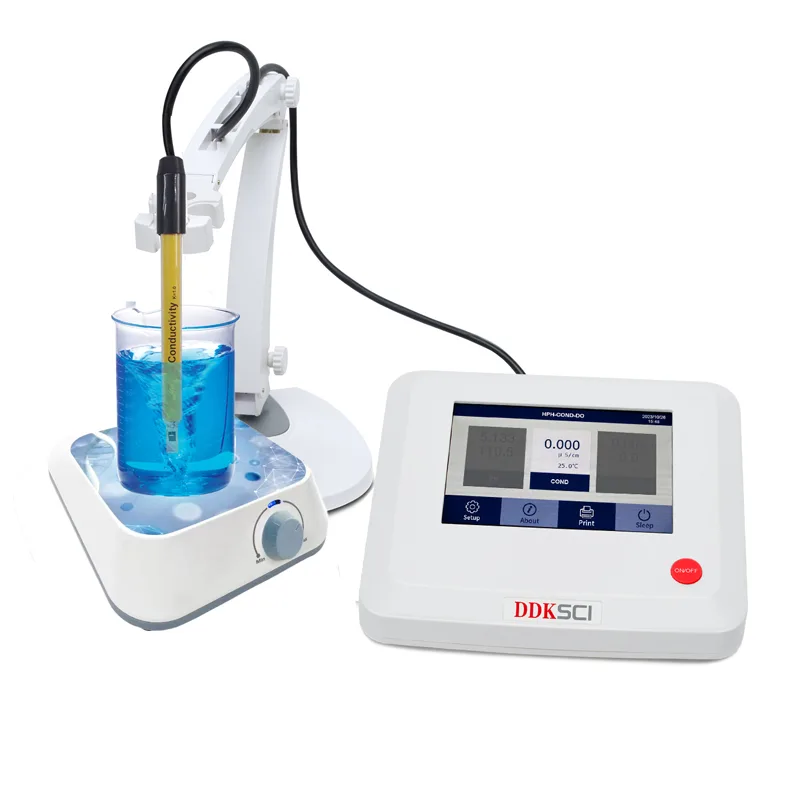

Benchtop Conductivity Meter Touch Screen

Mainly for precise measurement of solution conductivity, the DDKSCI Benchtop Conductivity Meter Touch Screen (Model EC100T) can test TDS, salinity and resistivity at the same time. It works for basic analysis and quality control in many industries, and gives reliable data support for lab experiments and production processes.

I. Core Functions: Multi-Parameter Detection with Conductivity as the Core

This Benchtop Conductivity Meter Touch Screen's core is high-precision conductivity measurement. It has a measurement range of 0–2000.0mS/cm and an auto-ranging function, so it works for samples with different concentrations. It has the CON201TG glass ATC conductivity probe, and it can automatically compensate for temperature changes to make sure measurement is accurate. The package has three types of standard solutions (84μS, 1413μS, 12.88mS/cm) and a magnetic stirrer. You can debug and use it right after opening the box, no need to buy extra accessories.

II. Core Advantages: Intelligent and User-Friendly for Hassle-Free Operation

Intuitive Touch Operation

It has a 7-inch TFT touchscreen. You can tap lightly to set parameters, and readings show clearly. Even beginners can learn to use it quickly.

Intelligent Calibration

It has a built-in microprocessor chip. It supports calibration guidance and automatic calibration (1-point calibration for conductivity). It also has options for electrode constant calibration or standard solution calibration. It has a self-diagnosis function and can automatically recognize standard buffer solutions, so it reduces operation errors a lot.

Efficient Data Management

It can store 5000 sets of data. It supports data transfer to computers via USB and can connect to printers via Bluetooth. This makes data organization and management efficient.

Robust and Durable

It has an IP54 dust and splash protection rating. It can easily stand small liquid splashes and dust in lab environments.

III. Application Scenarios: Fully Adaptable to Multiple Industries

Basic Laboratories: Used for regular conductivity testing of solutions.

Water Quality Monitoring: Tests conductivity to track water purity.

Food and Beverage Industry: Controls production water quality to make sure products are safe.

Pharmaceutical and Biotech Fields: Monitors conductivity of medicinal solutions.

Chemical Production: Tests solution conductivity to help with process quality control.

Agricultural Soil Analysis: Tests conductivity of soil leachate to support soil improvement.

It can meet testing needs of different industries.

IV. Key Technical Parameters

Conductivity: Measurement accuracy is ±0.5% FS±1 digit, and its auto-ranging range is wide (0–2000.0mS/cm).

TDS: Measurement range is 0–1000.0g/L, and its coefficient can be adjusted.

Temperature: Measurement range is -10.0–135.0℃, accuracy is ±0.2℃. It can precisely adapt to different ambient temperatures.

Data Transmission: It has a computer connection cable, so data transfer is stable and easy.

V. Frequently Asked Questions (FAQ)

Does it support electrodes with different electrode constants?

Answer: Yes. The Benchtop Conductivity Meter Touch Screen can work with electrodes of different electrode constants. You can choose the electrode constant calibration mode during calibration to make it compatible.

What is the function of the magnetic stirrer?

Answer: The stirrer makes sure the sample concentration is even. It prevents measurement errors caused by local concentration differences and improves data accuracy.

Will old data be overwritten when the 5000-set storage is full?

Answer: No. When the storage is full, the instrument will show a "Memory Full" reminder. You have to delete old data before storing new data. This prevents accidental deletion of important data.

With its precise conductivity measurement and easy-to-use touch operation, the DDKSCI Benchtop Touchscreen Conductivity Meter has become a practical tool for quality control in many industries. It helps improve detection efficiency and accuracy.
