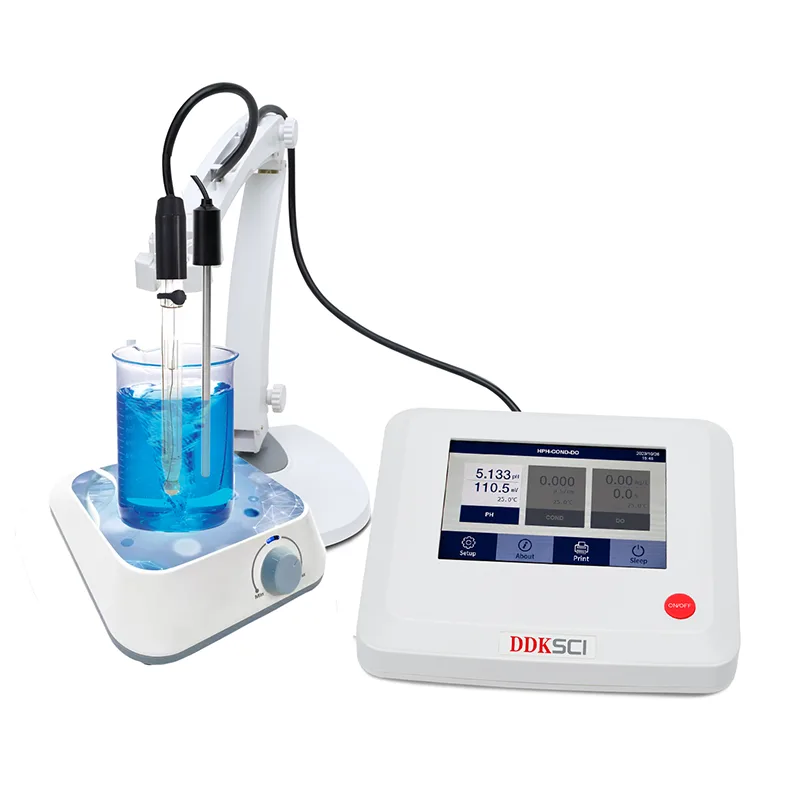

Benchtop pH Meter Touch Screen

Centered on the accurate measurement of pH and mV values, the DDKSCI Benchtop pH Meter Touch Screen (Model PH100T) can expand its measurement functions with an optional ORP electrode. It is suitable for analytical scenarios across multiple industries, providing stable and reliable data support for laboratory testing, production quality control, and other applications.

I. Core Function: Precise Measurement of pH/mV Values

This Benchtop pH Meter Touch Screen's core is high-precision pH measurement, with a range of -2.000–20.000pH. It can also measure mV values from -1999mV to +1999mV. You can add an optional ORP electrode to get ORP measurement function.

It uses a 201G refillable glass pH probe and a TEMP-01 stainless steel temperature probe. It can automatically compensate for temperature changes, so measurement is accurate in different environments. The package has three types of standard solutions (pH4.00, 7.00, 10.01) and a magnetic stirrer. You can debug and use it right after opening the box, no need to buy extra accessories.

II. Core Advantages: Intelligent, Convenient and Easy to Operate

Intuitive Touch Operation

Equipped with a 7-inch TFT touch screen, it enables parameter setting with simple taps and displays readings clearly and intuitively, making it easy for beginners to master quickly.

Smart Calibration & Error Reduction

The built-in microprocessor chip supports calibration guidance and automatic calibration. pH allows 1–5 point calibration and can automatically recognize standard buffer solutions; paired with a self-diagnosis function, it greatly reduces operational errors.

Efficient Data Management

It can store 5,000 sets of data, supporting data transmission via USB and computer, as well as Bluetooth connection to printers, facilitating efficient data organization and sorting.

Robust & Durable

With an IP54 dustproof and splash-proof rating, it can easily withstand minor liquid splashes and dust in laboratory environments.

III. Application Scenarios: Comprehensive Adaptation to Multiple Industries

Routine laboratories: Used for routine pH testing of solutions.

Food and beverage industry: Controls the pH of production water and raw materials to ensure product consistency.

Pharmaceutical and biotechnology research: Monitors the pH parameters of drug solutions in R&D projects.

Environmental Monitoring: Determines the pH values of surface water and industrial wastewater for pollution assessment.

Chemical Industry: Assists in pH quality control during process production to maintain process stability.

It meets the testing needs of a wide range of industries.

IV. Frequently Asked Questions (FAQ)

What is the maximum number of calibration points supported?

Answer: It supports 1–5 point automatic calibration, which can be selected according to testing accuracy requirements. The more calibration points used, the higher the measurement accuracy.

Does the pH probe require regular maintenance?

Answer: Yes. The probe adopts a refillable design. It is recommended to replenish the electrolyte regularly, rinse it with distilled water after use, and cover it with a protective cap to extend its service life.

Can data be printed directly via a printer?

Answer: Yes. The instrument supports Bluetooth connection to printers (printer is optional), and data can also be printed after export via USB or computer, meeting different printing needs.

With its precise measurement performance and user-friendly touch operation, the DDKSCI Benchtop pH Meter Touch Screen has become a practical tool for pH/mV analysis across multiple industries, helping to improve detection efficiency and precision.
